Speed, Velocity and Acceleration
Speed, velocity and acceleration
Speed and distance-time graphs
Speed is measured in metres per second (m/s) or kilometres per hour (km/h). If an athlete runs with a speed of 5 m/s, she will cover 5 metres in one second and 10 metres in two seconds. An athlete with a faster speed of 8m/s will travel further, 8m in each second, and will take less time to complete his journey.
This video shows a working example of speed calculation and talks about constant speed.
Direction of travel
There are two ways of looking at a journey:
- You can say that the distance you travel can only increase or stay the same, and then the speed is always a positive number.
- You can consider the direction you travel, so that if you travel towards school, that is a positive distance and when you travel in the opposite direction that is a negative distance. Sometimes, distance in a given direction is called displacement.
- You only need to know the term ‘displacement’ for Edexcel.
Quantities that have a magnitude and direction are called vectors.
Velocity is a vector, because velocity is speed in a given direction.
Example : A boy walks in a positive direction and then back again with a constant speed of 2 m/s, so he walks with a velocity of +2 m/s and then with a velocity of –2m/s.
![](/sites/default/files/styles/full_width/public/revisionworld/imce/velocity%20formula.jpg?itok=Qg5UMQ_W)
Distance–time graphs
On a distance–time graph:
- a horizontal line means the object is stopped
- a straight line sloping upwards means it has a steady speed.
The steepness, or gradient, of the line shows the speed:
- a steeper gradient means a higher speed
- a curved line means the speed is changing.
If the direction of travel is being considered:
- A negative distance is in the opposite direction to a positive distance.
- A straight line sloping downwards means it has a steady speed, and a steady velocity in the negative direction.
Between 30 s and 50 s the cyclist stopped. The graph has a steeper gradient between 50 s and 70 s than between 0 s and 20 s – the cyclist was travelling at a greater speed.
To calculate a speed from a graph, work out the gradient of the straight line section as shown above in Fig. 9.1:
Average speed and instantaneous speed
You can calculate the average speed of the cyclist for the total journey in Fig 9.1 above using:
![](/sites/default/files/styles/full_width/public/revisionworld/imce/average%20speed.jpg?itok=-Nb3bq8j)
This is not the same as the instantaneous speed at any moment because the speed changes during the journey. If you calculate the average speed over a shorter time interval you get closer to the instantaneous speed.
This video explains about distance and acceleration
Velocity–time and speed–time graphs
A change of velocity is called acceleration. Speeding up, slowing down and changing direction are all examples of acceleration. Fig. 9.2 shows how to interpret a velocity–time graph.
![](/sites/default/files/styles/full_width/public/revisionworld/imce/velocity-time%20graph.jpg?itok=dNWL9T6G)
- A positive slope (gradient) means that the speed is increasing – the object is accelerating.
- A horizontal line means that the object is travelling at a steady speed.
- A negative slope (gradient) means the speed is decreasing – negative acceleration.
- A curved slope means that the acceleration is changing – the object has non-uniform acceleration.
Check carefully whether a graph is a speed-time graph or a distance-time graph.
On true speed–time graphs, the speed has only positive values. On velocity–time graphs the velocity can be negative.
![](/sites/default/files/styles/full_width/public/revisionworld/imce/ball%20rolling%20graph.jpg?itok=W1ZmfBnL)
Tachographs are instruments that are put in lorry cabs to check that the lorry has not exceeded the speed limit, and that the driver has stopped for breaks. They draw a graph of the speed against time for the lorry.

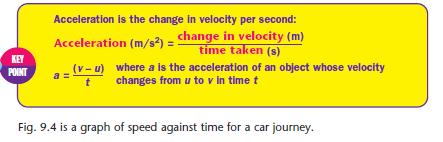

Graphs, acceleration and distance
![](/sites/default/files/styles/full_width/public/revisionworld/imce/speed%20against%20time%20for%20car.jpg?itok=-UTma2wR)
This video explains how to calculate acceleration
